Waterproof Energy Saving Outdoor Solar LED Light Wall
Product Features - Why You Should Choose Rayvenlights Outdoor Solar
Lights Over Others
- 270° wider lighting angle
- Easy Installing (comes with mounting screws)
- Easy to use (just one button switch between the modes)
- Built-in high performance lithium battery.
- High electrical efficacy (20%) monocrystalline silicon with
laminated panel.
- OSRAM 2835(0.5W/PC)LED source, luminous efficiency 150lm/w.
- Professional PIR sensor design, three lighting modes
Use the solar panels (monocrystalline silicon) to convert up to 23%
of sunlight into electrical energy. The charging time is faster at
least 5% than other solar wall lamps.
Wireless Motion Sensor Lights: The Solar light features a PIR
motion sensor ,no wires required. Can detect all motion at 120°, 10
ft -16 ft distance.
Easy to Use:It will work by itself after installation,just one
button switch between the different modes.
Lighting Mode | Sensing Mode / Sensing+Dim Mode / Continuous Lighting Mode |
| Sensing Mothod | Human Infrared Sensing,Beam Angle:120°,Distance:0-8m |
| Solar Panel | Polycrystalline Silicon Laminate Panel, 5.5V/1.8W,Conversion
Efficiency≥20% |
| Battery | Li-ion Battery:3.7V 3000mAh |
| LED Light Source | OSRAM 2835,0.5W/18PCS |
| CCT/CRI | 300K/4000K/6000K,CRI>80 |
| Luminous Flux | 600LM |
| Power | 3.5w |
| Charge Time | 6-8H |
Lighting Time | >12h |
Protective Function | Overcharge/ Over discharge/ Short Circuit Protective |
IP Rating | IP65 |
Operating Temperature | -20-60℃ |
Product Size | L220*W109*H45mm |
Net Weight | 220G |
Product Details
Large Monocrystal Silicon Solar Panel
High Luminous Efficacy LED Chip from Germany
100% Charging and Discharging Test
Over-loaded or Over-discharged IP Protection
Large Capacity Li-ion Battery
Industrial Grade High Strength ABS Raw Material Shell
Intelligent Control PIR Human Body Sensing Chip

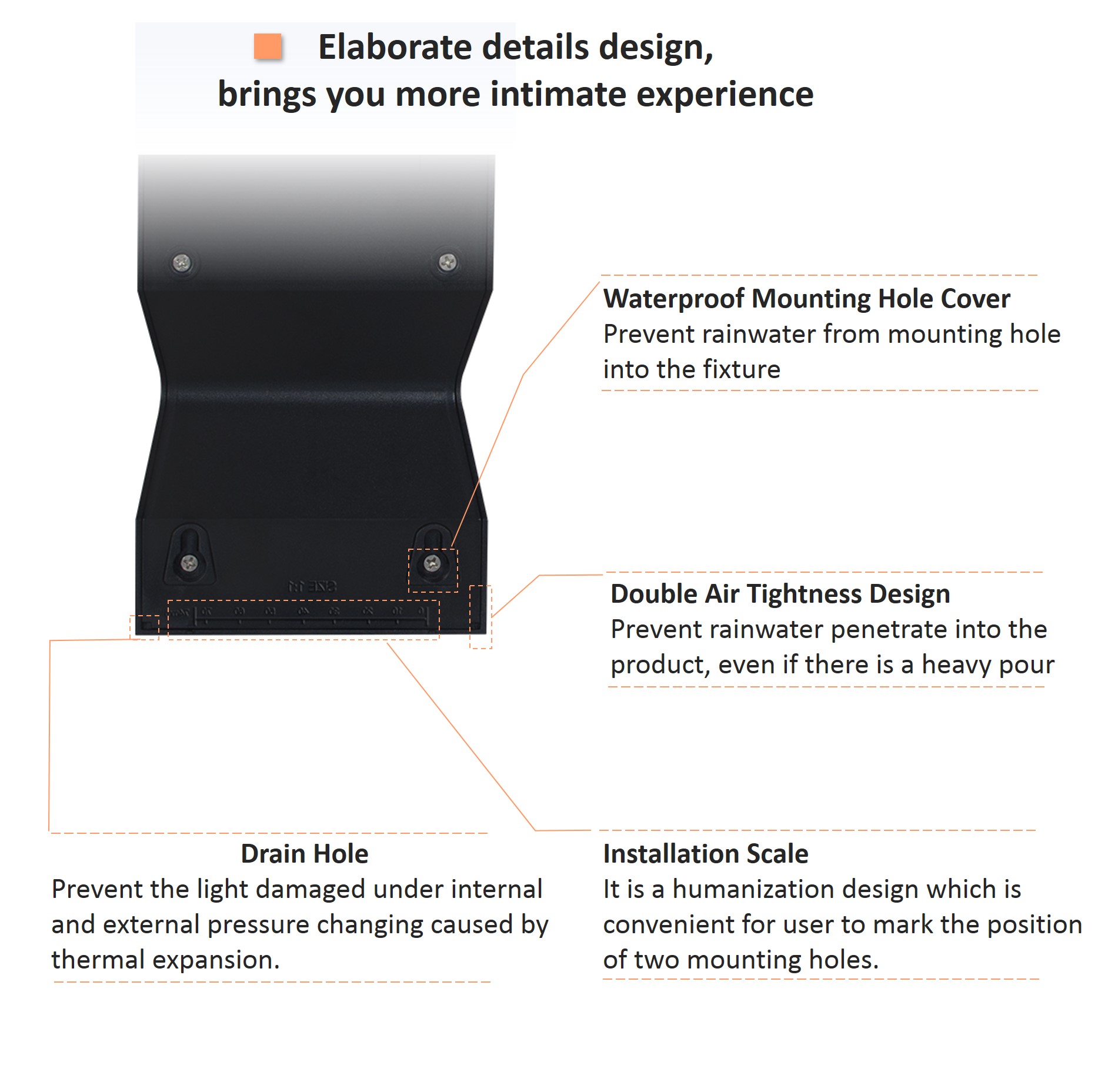

Waterproof Mounting Hole Cover
Prevent rainwater from mounting hole into the fixture
Double Air Tightness Design
Prevent rainwater penetrate into the product, even if there is a
heavy pour
Drain Hole
Prevent the light damaged under internal and external pressure
changing caused by thermal expansion.
Installation Scale
It is a humanization design which is convenient for user to mark
the position of two mounting holes.
Smart lighting mode design, let you enjoy intelligent and easy life
-Charging during daytime, lighting at night. Lights will keep 15s
lighting each time. Full bright when motion detected, auto off
after 15s. Off - Bright - Off as a cycle
- Dim light(20% brightness) in the dark, full bright when motion
detected, auto turn to dim light again after 15s. Dim light will
keep lighting until next motion detected. Dim - Bright - Dim as a
cycle.
- The light will keep lighting all the night. This mode will consume
the power sharply and the light will shut down depends on battery
capacity.
This solar LED light is designed with built-in 18650 Li-ion
battery; Widely used in sunny places (It also
can be charged when the light is weak, but the generated current is
relatively slow and can’t meet LED
working current consumption ), such as fences, walls, gates,
courtyards, buildings and so on. Charging
during daytime, lighting at night.
Designed with professional PIR sensor, auto lighting by human body
sensing. Using intelligent IC
control system to ensure safety during charging, discharging and
transportation. Eliminate the danger of
batteries damage and even explosion caused by over-loaded or
over-discharged. The product is strictly in
accordance with IP65 waterproof design structure, safe and
practical.
Fantastic and unique look, fits in every way (customizable)
PACKAGE
| Package | Product Quantity | Package Size | G.W |
| Color Box | 1PCS | L226*W115*H51mm | 290g |
| Carton Box | 60PCS | L472*W326*H595mm | 18.5kg |
Packaging:
Factory packing
Sample Availability ＆ Policy:
Sample are available ＆ sample courier freight should be paid by
buyers, it can be returned after bulk order confirmed
